It’s important to know how to check your water heater element. This is key for keeping your home comfy and safe. These elements help give you hot water. If they don’t work right, you might not get enough hot water or hear strange noises.
Most of the time, you can fix these problems by yourself. You don’t always need a professional. Learning how to find and fix issues can save you a lot of trouble.
Many problems are caused by the thermostat or the heating elements. Knowing how to find these problems lets you fix them easily. This guide will show you how to keep your water heater working well.
For more details and to learn how to test your heating elements, check out this resource: how to check your water heater.
Understanding Water Heater Elements
Water heater elements are key to heating your home’s water. They are long rods that go into the tank. They turn electrical energy into heat.
It’s important to know about the different types and their roles. This helps keep your water heater working well.
Types of Water Heater Elements
Most homes have two heating elements. They are:
- Upper Element: This heats the top part of the tank. It makes hot water fast for your taps.
- Lower Element: This warms the bottom of the tank. It keeps the water hot and ready when you need it.
Knowing about these elements helps with checks. This ensures both elements work right.
Function of Heating Elements
Heating elements’ main job is to warm the water. They work with a thermostat set between 120°F and 140°F. When the water gets too cold, the thermostat turns on the elements.
A good element shows a resistance of 10 to 30 ohms. If it shows infinity or is off, it’s broken.
Checking your elements often is key. It spots problems like sediment or rust. This keeps your hot water flowing smoothly.
| Element Type | Function | Typical Resistance |
|---|---|---|
| Upper Element | Heats upper section of the tank | 10-30 ohms |
| Lower Element | Maintains consistent temperature | 10-30 ohms |
Signs of a Faulty Water Heater Element
Knowing when your water heater element is bad is key to a comfy home. Not catching these signs can cause big problems. So, it’s important to stay alert.
Insufficient Hot Water
One big sign of a faulty water heater element is not enough hot water. If the water is lukewarm or too cold, it might mean a problem. Sometimes, both elements can fail, leaving you with cold water. Checking often can help you find the issue fast.
Odd Noises from the Heater
Strange sounds like popping or hissing from the heater are warning signs. These sounds can mean sediment or failing elements. They often mean you need to act fast.
| Sign | Description |
|---|---|
| Lukewarm Water | Indicates possible failure of heating elements. |
| No Hot Water | Both heating elements may be non-functional. |
| Odd Noises | Popping or hissing suggests sediment or element failure. |
| Fluctuating Temperatures | Hot water does not maintain a consistent temperature. |
| Frequent Circuit Breaker Tripping | May occur due to electrical issues from a faulty element. |
| Rusty Water | Corrosion inside the tank can indicate element issues. |
Regular upkeep and quick action at the first sign of trouble can make your water heater last longer. If you see any signs, call a pro for a check-up and fixes.

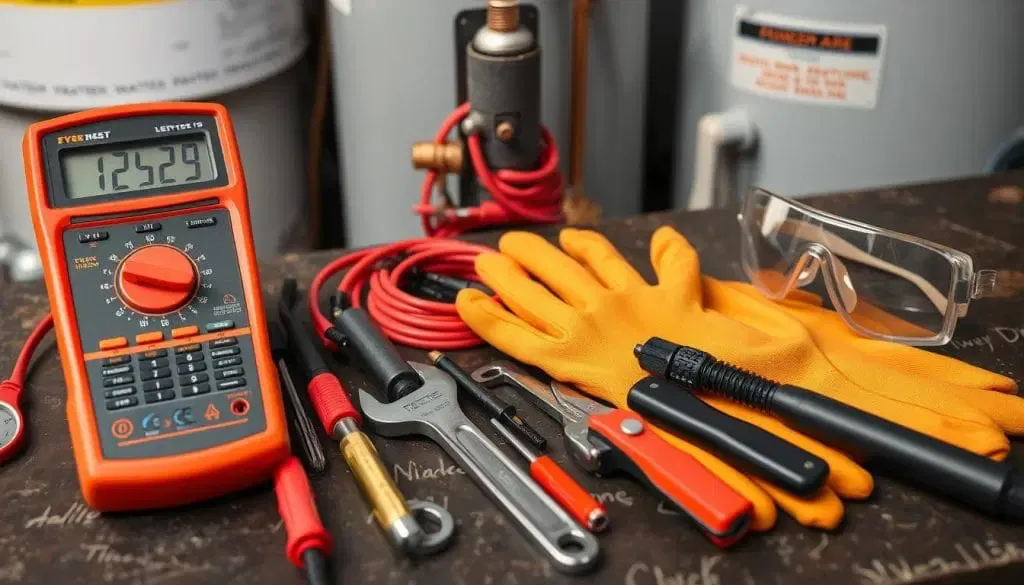

Necessary Tools for Testing Elements
Before we start testing your water heater element, make sure you have all the right tools. Being ready makes the job easier and keeps you safe.
Multimeter: An Essential Tool
A multimeter is key for testing your water heater element. It checks electrical resistance to see if the elements work right. For a 240V water heater, here are some important resistance numbers:
- 4500-watt elements: about 12.8 ohms
- 3500-watt elements: around 16 ohms
- 5500-watt elements: should show 10-11 ohms
Remember, resistance can change, even with a good multimeter. So, it’s normal to see a range from 10 to 30 ohms when you test.
Safety Equipment Needed
It’s very important to have safety gear for water heater maintenance. You’ll need:
- Gloves: They protect you from electrical shock and heat.
- Goggles: They keep your eyes safe from debris and splashes.
- Voltage test pen: It helps make sure the power is off before you start working.
Having these tools and safety gear is the first step to a successful water heater inspection. Your careful preparation helps you test well and stay safe. This lets you fix problems with confidence.
How to Safely Turn Off the Water Heater
Keeping your water heater safe is very important. Before you start working on it, learn how to turn it off safely. This guide will help you do it right, keeping you safe.
Shutting Off Power
First, turn off the water heater’s power. Find your breaker box and look for the water heater’s circuit. Switch it off to stop the electricity. This makes it safe for you to work.
Draining the Tank
Then, drain the tank if you’re doing maintenance or repairs. Here’s how:
- Turn off the cold water supply to the tank.
- Attach a garden hose to the drain valve. Put the other end in a floor drain or outside.
- Open the drain valve slowly. Let the tank empty completely. Wait for the water to cool before touching anything.
By following these steps, you can safely turn off the water heater. You’re also ready for any repairs. Remember, keeping your water heater in good shape is key for its long life and performance.
Step-by-Step Guide to Test Heating Elements
Testing your water heater’s heating elements is easy if you follow a simple guide. This guide helps you check the elements and make sure they work right. Knowing how to get to the elements and use a multimeter is key to keeping your system running well.

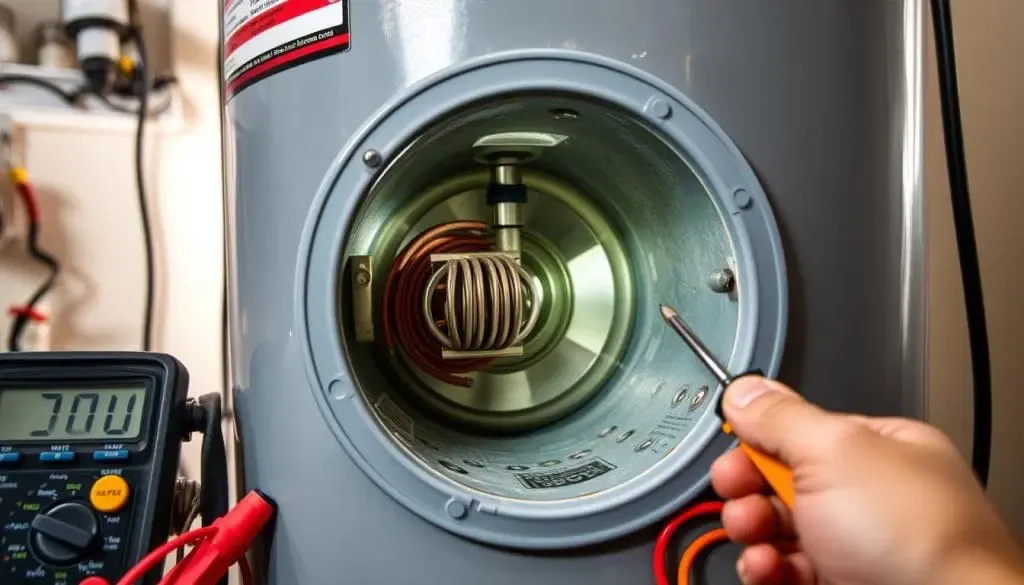

Accessing the Heating Elements
To start, you need to safely get to the heating elements in your water heater. Here’s what to do:
- Turn off power to the water heater at the breaker panel.
- Remove the outer thermostat cover using a screwdriver.
- Carefully take off any insulation or plastic covers that block your view of the heating elements.
Once you have the heater’s parts open, you can check each element well.
Using a Multimeter to Check Resistance
Now, it’s time to use your multimeter to see how the heating elements are doing. Here’s how:
- Set your multimeter to the Ohm (Ω) setting.
- Probe the terminals of the heating element with the multimeter leads.
- Check the readings.
A good heating element should show a resistance of 10 to 30 ohms. If it shows 0 ohms, it’s shorted and needs to be replaced. An infinite reading means it’s open and also needs to be replaced. Always test both the upper and lower elements to make sure you have hot water.
Interpreting the Multimeter Readings
Understanding multimeter readings water heater can help find out if your heating elements are okay. After doing your resistance test, it’s key to read the results right. Normal resistance levels for the water heater element are usually between 10 and 30 ohms. If the readings are lower, there might be a problem, which we’ll look into.
Normal Resistance Levels
When you test the heating elements, you’ll see normal readings around 14 ohms. Seeing numbers in this range means your heating elements are working right. It’s important to test both the upper and lower elements to make sure everything works well.
What to Do if Readings are Low
If your readings are low, it might mean there’s a problem. This could mean the element is shorted or open. You’ll need to take steps to check these results:
- Make sure your multimeter is set right for accurate readings.
- Look at the connections and wiring for any damage.
- If the problem keeps happening, get help from a plumbing expert.
It’s very important to understand the results to keep your water heater working well. If the readings are low, you might need a pro to help replace it.
| Reading (Ohms) | Condition | Action Required |
|---|---|---|
| 10 – 30 | Normal | No action needed |
| Below 10 | Potential Fault | Inspect element |
| Zero | Element May be Burned Out | Replace element |
Replacing a Faulty Heating Element
If your heating element is broken, you need to pick the right part to replace it. It’s important to choose one that fits your water heater. Many makers sell repair kits with heating elements and thermostats.
Make sure to check the voltage and wattage before buying. You can find these parts online or at local stores. Doing it yourself can save you money, costing between $10 to $60.
Selecting the Right Replacement Part
When you’re looking to replace a water heater element, make sure it fits your heater. Electric tank water heaters have upper and lower elements. It’s best to replace both, even if only one is broken.
This way, you avoid future problems and keep your system working well for a long time.
DIY vs. Hiring a Professional
Deciding to fix it yourself or call a pro depends on your skills. If you’re good at DIY, this might be a fun project. But if you’re not sure or run into problems, it’s better to get help.
Professional help can cost between $200 to $300. It saves you time and effort. Make sure your water heater works right by choosing the right replacement.
